Work temperature: -40- +60℃
Charging and discharging efficiency＞70% at -40℃(0.1C charge & 0.2C discharge)
Service life＞4 years. Excellent trickle/ float charge capability for long-term use.
|
TMK Model |
Volt |
Capacity |
Dimensions |
Standard Charge |
Rapid Charge |
Wt. |
||||
|
App. |
||||||||||
|
Typical |
Min. |
H |
Dia. |
mA |
h |
mA |
h |
g |
||
|
mAh |
mAh |
mm |
mm |
|||||||
|
AAA55K |
1.2 |
550 |
550 |
43.5±0.5 |
10.0+0.5 |
60 |
14 |
165 |
4 |
12 |
|
AA160K |
1.2 |
1600 |
1500 |
48.5±0.5 |
13.9+0.5 |
160 |
14 |
480 |
4 |
29 |
|
AA180K |
1.2 |
1800 |
1700 |
48.5±0.5 |
13.9+0.5 |
180 |
14 |
540 |
4 |
29 |
|
C400K |
1.2 |
4000 |
3900 |
49.0±0.5 |
25.0+0.6 |
400 |
16 |
800 |
7 |
80 |
|
D800K |
1.2 |
8000 |
7500 |
60.0±0.5 |
32.0+0.5 |
800 |
14 |
1600 |
7 |
170 |
|
F1000K |
1.2 |
10000 |
9000 |
89.0±0.5 |
32.0+0.6 |
1000 |
15 |
2000 |
7 |
220 |
|
F1300K |
1.2 |
13000 |
12000 |
89.0±0.5 |
32.0+0.6 |
1300 |
15 |
2600 |
7 |
240 |
electric energy : 96 Wh
charging rate : 100%
discharge rate : 100%
serve : OEM/ODM
maximum discharge current : 2C
application area : Consumer electronic products; Household appliances; Electric tools; Flashlights; Medicine
electric energy : 4.32 Wh
charging rate : 0.1C
discharge rate : 0.2C
cycle life : 500
serve : OEM/ODM
application area : Electric tools, consumer electronics, solar energy storage systems, flashlights
serve : OEM/ODM
rechargeable : yes
temperature range : -40℃～+55℃
Capacity : 4000mAh
nominal voltage : 4.8V
application area : Flashlight, medical, emergency lighting, emergency lighting, power tool
electric energy : 43.2 Wh
charging rate : 100%
discharge rate : 100%
trickle charge : 0.05C
serve : OEM/ODM
application area : Solar energy storage system, healthcare, power tools, boats, solar lighting, solar lighting
electric energy : 38.4 Wh
charging rate : 0.1C
discharge rate : 0.2C
cycle life : 500 cycles
weight : 640g
application area : Emergency lighting, exit signs, solar lighting, flashlights, flashlights. Others
electric energy : 48 Wh
charging rate : 90%
discharge rate : 90%
Capacity : 4000mAh
nominal voltage : 12V
application area : Toys, power tools, household goods, consumer electronics, boats, golf carts, submarines
electric energy : 9.6 Wh
charging rate : 0.1C
discharge rate : 0.2C

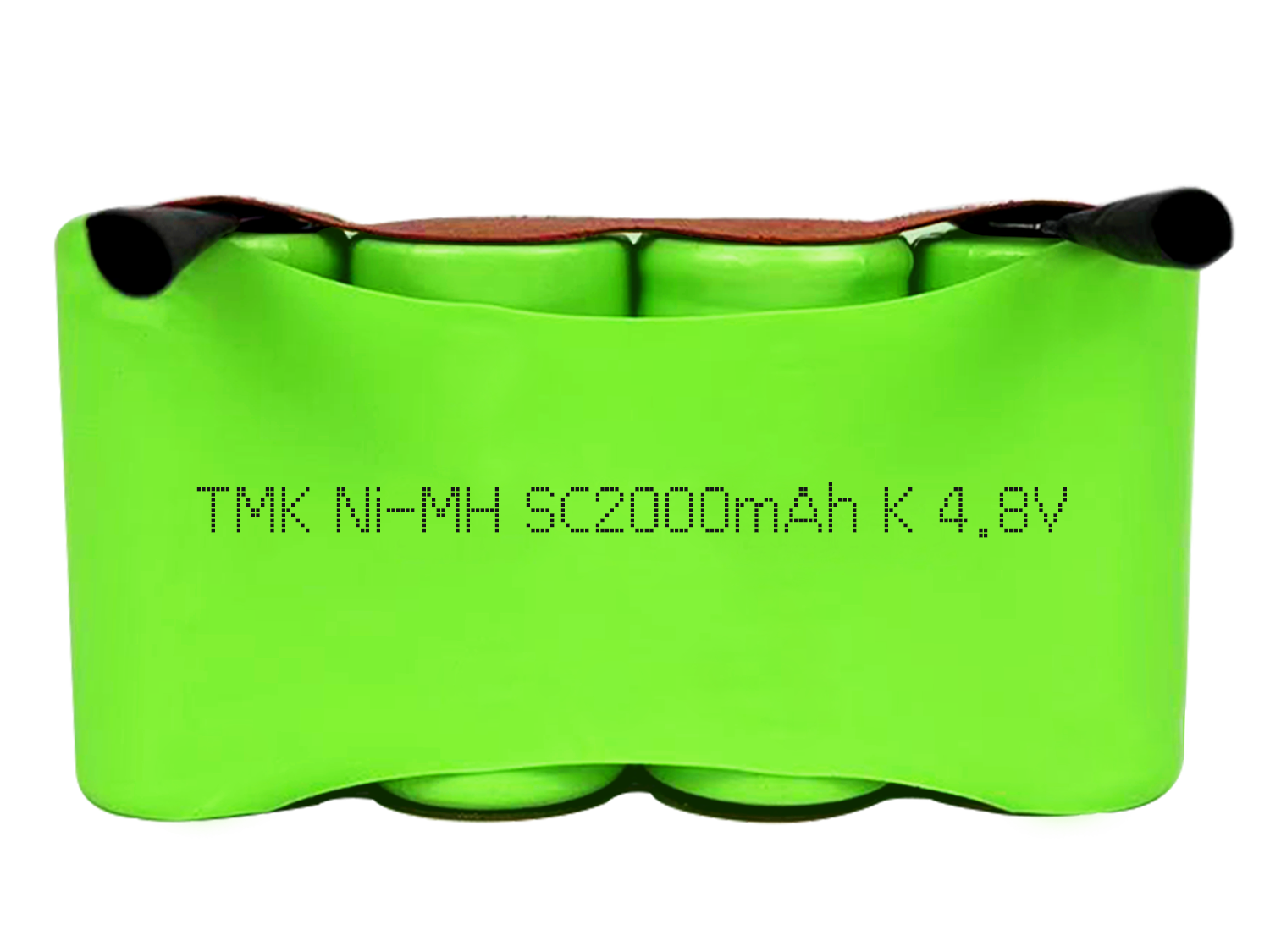

Capacity : 2000mAh
nominal voltage : 4.8V
application area : Toys, consumer electronics, lighting
temperature range : -40℃~+55℃
weight : 65
Capacity : 3000mAh
nominal voltage : 9V
application area : Solar lighting, solar lighting, solar lighting, solar lighting
electric energy : 24 Wh
charging rate : 0.2C-1C
discharge rate : 5-8C

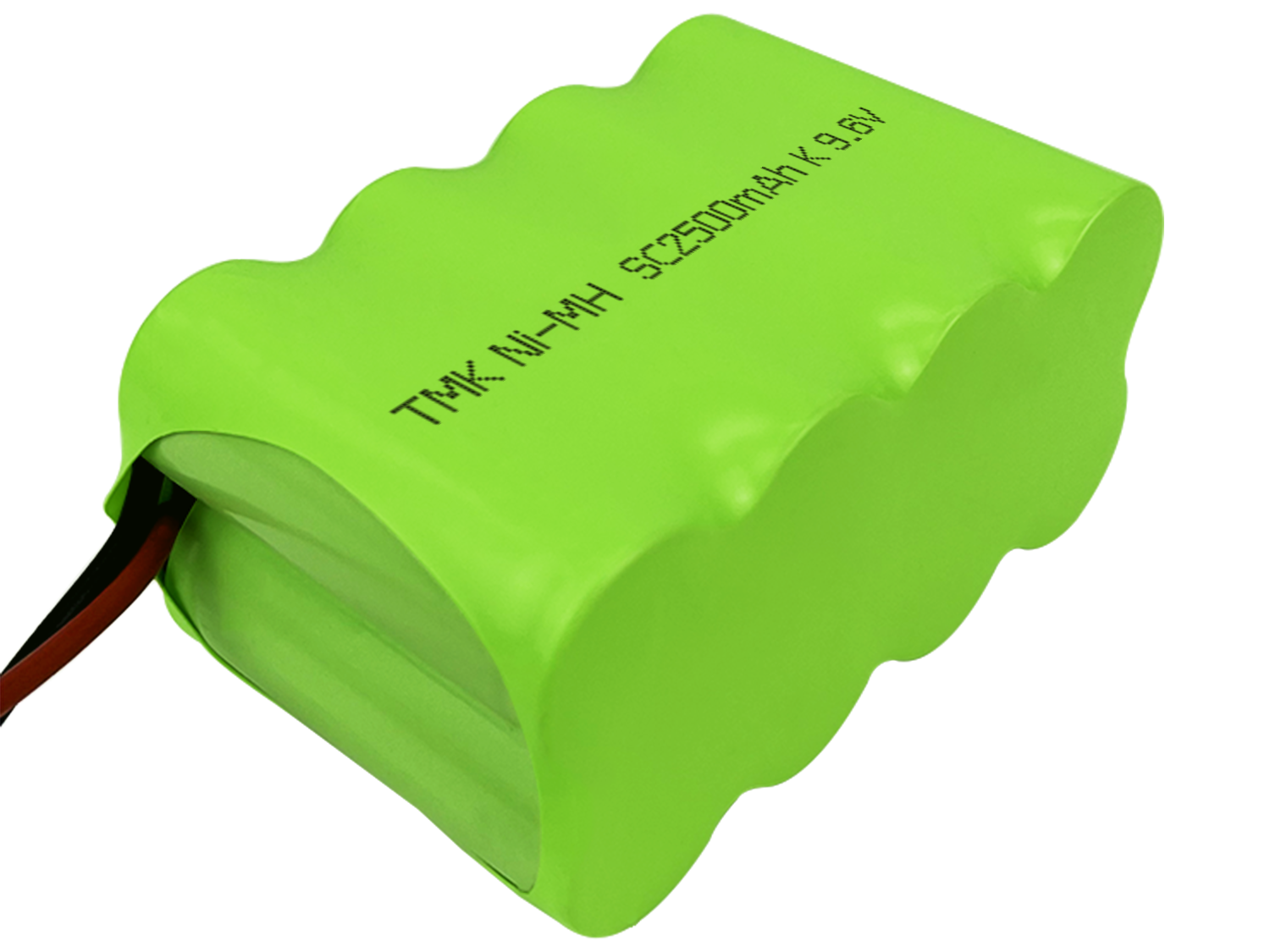

Capacity : 2500mAh
nominal voltage : 9.6V
application area : Electric tools, ships, solar energy storage systems, flashlights, medical, emergency lighting
electric energy : 26 Wh
charging rate : 0.05 ~ 0.2C
discharge rate : 1C
Capacity : 800 ~ 13000mAh
nominal voltage : 1.2V ~ 24V
application area : Solar lighting, solar lighting, solar lighting, solar lighting
electric energy : 3.36 Wh
charging rate : 0.1C
discharge rate : 0.2C

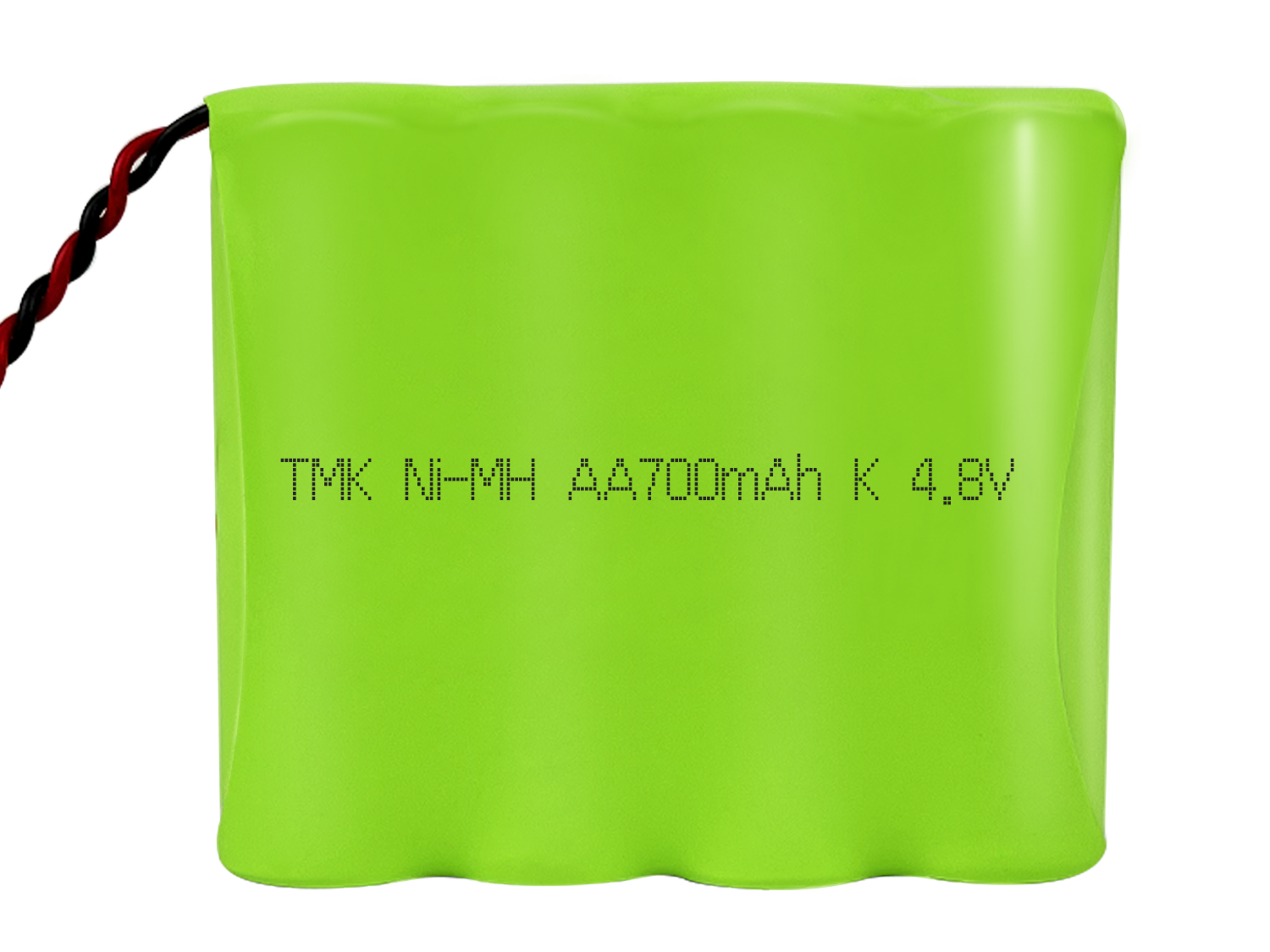

Capacity : 700mAh
nominal voltage : 4.8V
application area : Toys, power tools, household items, consumer electronics, electric bicycles/motorcycles
electric energy : 21.6 Wh
charging rate : 0.1C
discharge rate : 0.2C

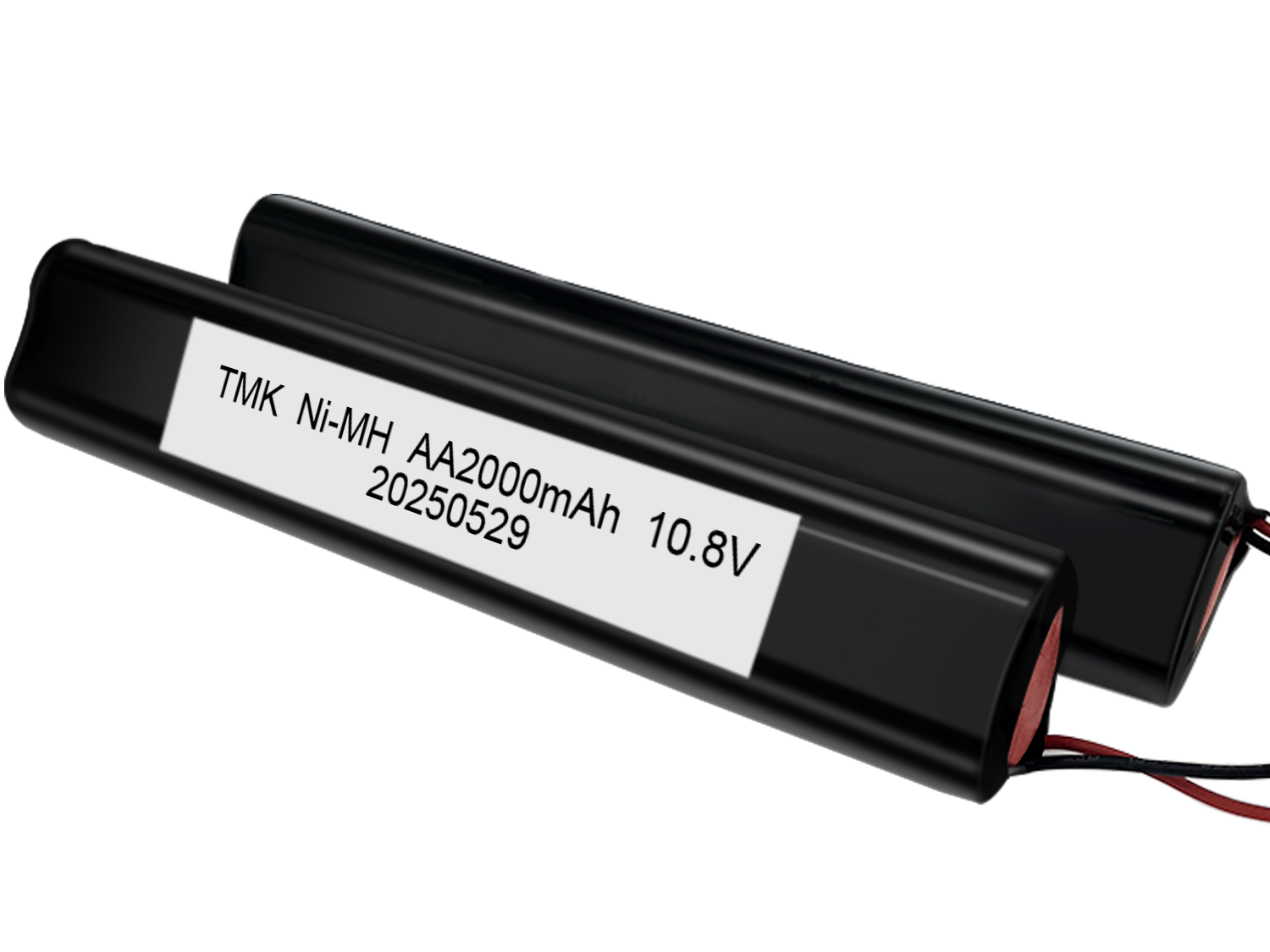

nominal capacity : 1800mAh
nominal voltage : 10.8V
application area : Toys, power tools, household items, consumer electronics, solar energy storage systems, healthcare, flashlights
electric energy : 12.96 Wh
charging rate : 0.1C
discharge rate : 0.2C
nominal capacity : 1800mAh
nominal voltage : 7.2V
application area : Emergency lighting, exit signs, solar lighting, flashlights, torches, others
electric energy : 14.4 Wh
charging rate : 0.05C-0.1C
discharge rate : 0.2C

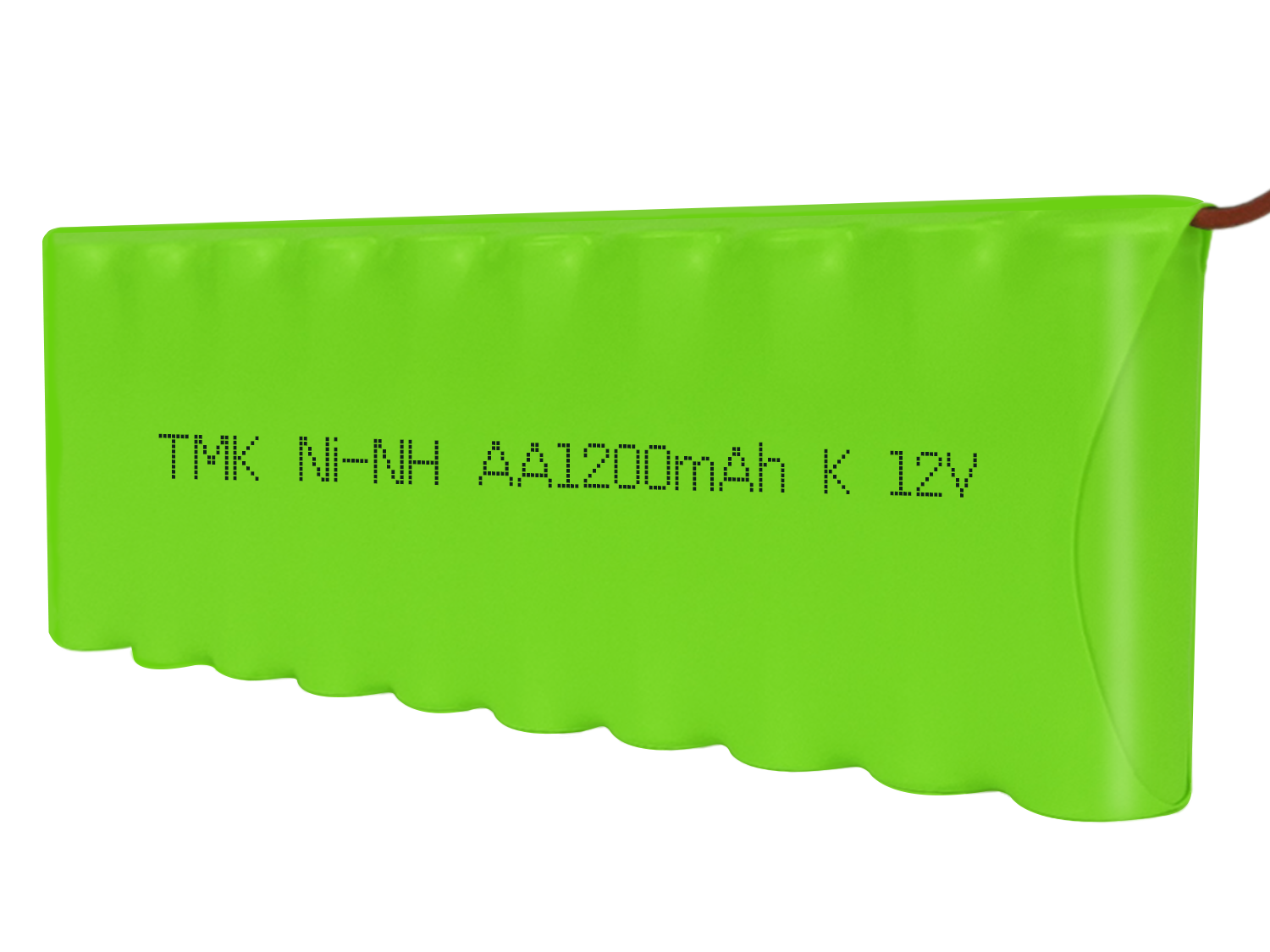

nominal voltage : 12V
nominal capacity : 1200mAh
application area : Emergency lighting, exit signs, solar lighting, flashlights, torches, others.
cycle life : 1000
Rated Capacity : 15.12 Wh
discharge rate : 0.2C
charging rate : 0.1C
nominal voltage : 21.6V
application area : Toys, power tools, household items, consumer electronics, flashlights, etc.
capacit y: A:1800-2600mah
nominal voltage : 3.6V 4.8V 6.0V 7.2V 8.4V
discharge rate : 99%
charging rate : 99%
electric energy : 12.6 Wh
application area : Medical care, uninterruptible power supply, consumer electronics, household goods

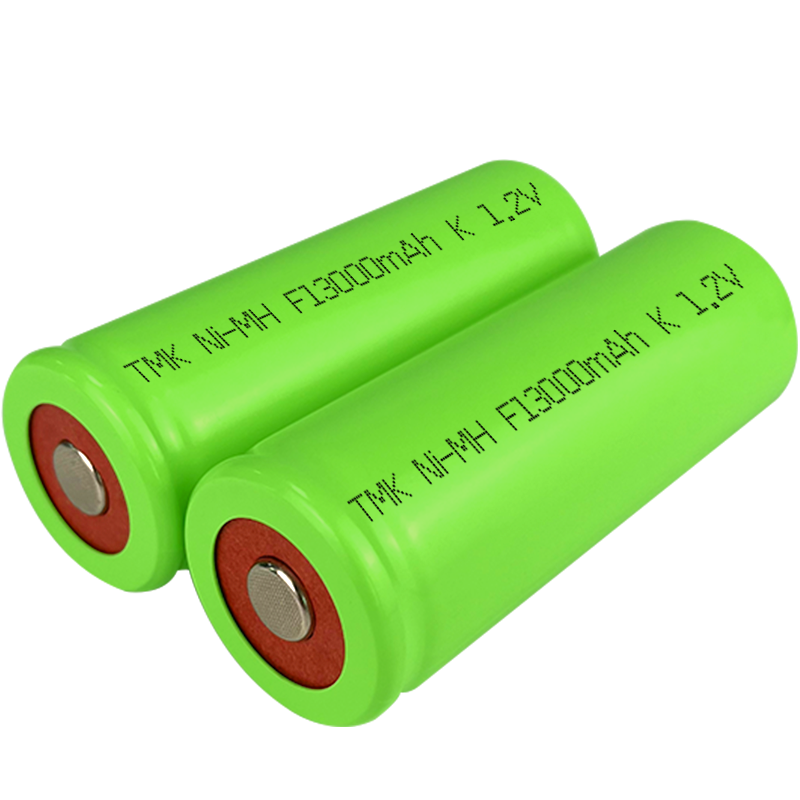

Nominal Capacity: 13000mAH
Minimum Capacity: 12000mAh
Standard Charge: 1300mA, 16 hours
Quick Charge: 2600mA, 420min
Continuous Discharge: less than 2600mA
Discharge Cut-Off Voltage: 1.0V
· Work temperature: -40- +60℃
· Charging and discharging efficiency＞70% at -40℃ (0.1C charge & 0.2C discharge)
· Service life ＞4 years. Excellent trickle/ float charge capability for long-term use.

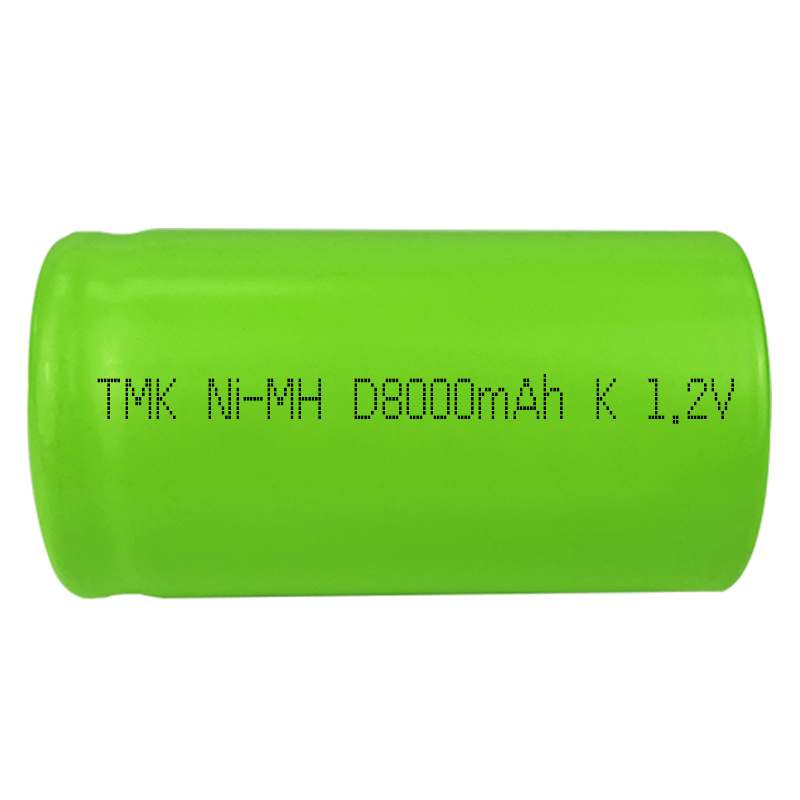

Nominal Capacity: 8000mAH
Minimum Capacity: 7500mAh
Standard Charge:800mA, 16 hours
Quick Charge:1600mA,420min
Continuous Discharge:less than1600mA
Discharge Cut-Off Voltage:1.0V
